Parameter
|
Item |
Specification |
|
Total Thickness |
8.0mil (300μm) |
|
Visible Light Transmittance (VLT) |
26.3% |
|
UV Rejection Rate |
≥97% |
|
Infrared Rejection |
83.1% |
|
Total Solar Energy Rejection (TSER) |
59.2% |
|
Visible Light Reflectance (Interior) |
46.9% |
|
Visible Light Reflectance (Exterior) |
44.8% |
|
Shading Coefficient(SC) |
0.46 |
|
Standard Roll Size |
1.52m × 30m (60inch × 100ft) |
|
Warranty |
10 years |
Feature
3-Ply Composite Construction
A reinforced multi-layer structure designed for enhanced glass safety and long-term durability.
01
8-Mil Security Performance
Robust film construction provides added resistance to impact and tearing while helping maintain film integrity.
02
Enhanced Solar Heat Rejection
Improved heat rejection performance helps limit solar heat entering through glass.
03

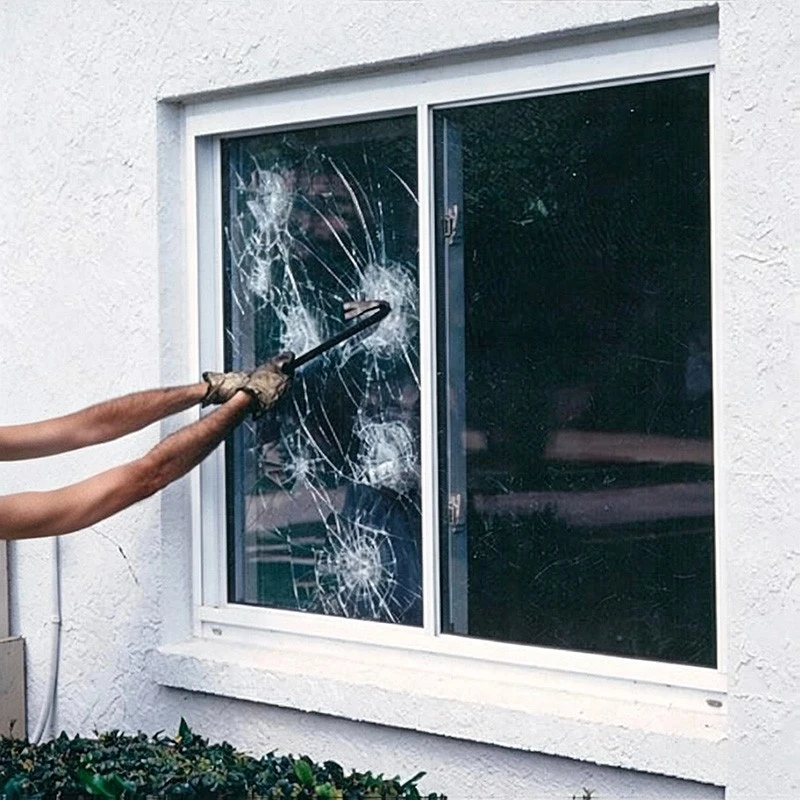

Glass Fragment Retention
Helps hold broken glass together and reduce the risk of flying or splintered fragments.
04
Higher TSER Performance
Greater total solar energy rejection contributes to a cooler and more comfortable interior environment.
05
Production Details
Product Qualification
Shaoxing Zirui New Material Technology Co., Ltd. is a specialized functional film manufacturer, combining advanced imported precision-coating technology with strict quality control to deliver reliable film solutions. Our core products include automotive films, architectural films, and household protective films, with custom solutions available to meet diverse application needs.
We procure premium optical PET base substrates from certified upstream partners to ensure batch-to-batch consistency. All key steps-coating, curing, slitting, and packaging-are performed on-site, giving us full oversight. Stringent process checks at every critical stage, from incoming materials to final release, guarantee that each roll meets our performance standards before dispatch.

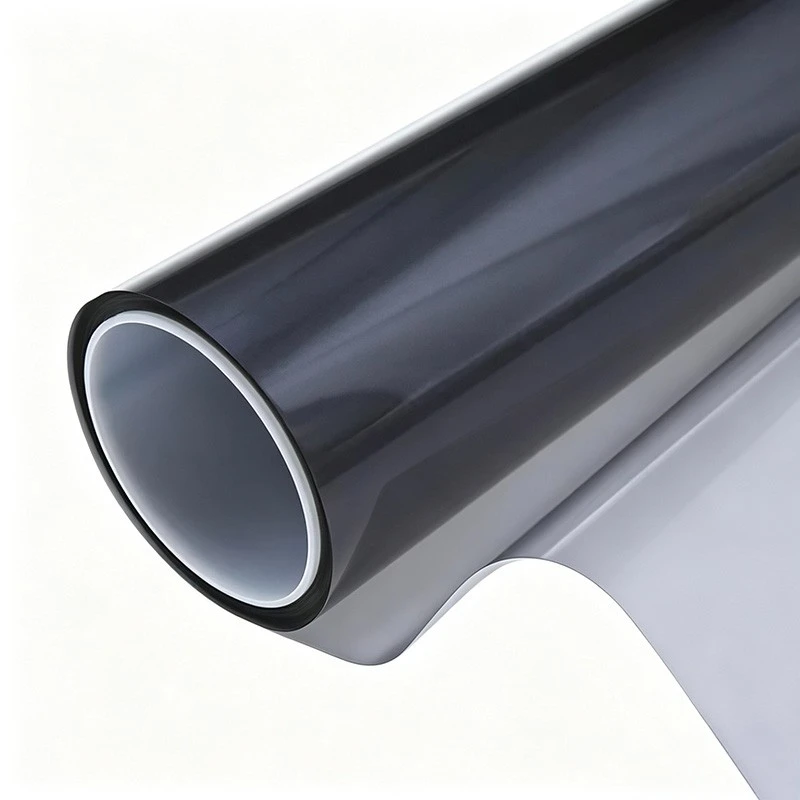

Our upgraded Security 3-Ply 8-Mil Composite Safety Window Film builds upon proven safety-focused craftsmanship with optimized optical and thermal performance. Featuring multi-ply composite construction, the film holds shattered glass fragments firmly under impact to mitigate injuries and property damage caused by flying shards, offering reliable defence against impacts, severe weather and vandalism. It delivers improved heat rejection and higher TSER performance alongside reduced VLT for enhanced privacy. It blocks 97% of harmful UV rays to slow fading of interior furnishings. Subjected to our full-range in-factory quality checks, this composite safety film maintains stable long-term performance, ideal for residential and commercial glass requiring both security and thermal control.
Deliver, Shipping and serving
Consultative Pre-Sales Support - Application-specific consultation and complimentary product samples are provided directly by our factory-based team, helping you pinpoint the ideal film solution for your market and performance requirements.
Complete Technical Documentation - CoA, TDS and all essential technical documents are provided up front, accelerating your evaluation process and streamlining order handling from quotation to delivery.
Responsive After-Sales Support - Our support team responds to every quality-related inquiry within 24 hours, delivering professional, engineered solutions in full compliance with standard purchasing, storage, and installation conditions.
FAQ
Q: Is this Security 3‑Ply 8‑Mil Composite Safety Window Film explosion-proof?
A: No. It is not designed or certified as an explosion-proof or blast-resistant film. However, its 3-ply 8-mil composite construction provides enhanced glass fragment retention. In the event of glass breakage, the film helps hold shattered fragments together, reducing the risk of flying shards and providing an added layer of safety and security.
Q: Is the Security Window Film difficult to install?
A: With proper installation techniques and professional tools, the film can be applied efficiently to architectural glass. Its reinforced 3-ply construction is designed for controlled handling during installation, while professional application helps ensure consistent adhesion, a clean finish, and reliable long-term performance.
Q: Where is this Security 3‑Ply 8‑Mil Composite Safety Window Film typically installed?
A: It works well on nearly all indoor glazing outside perimeter-fenced zones. Common placements include entryways, busy corridors, communal areas (e.g., cafeterias, auditoriums, libraries, gyms), plus classroom doors and staff-room partitions.
Q: How should I maintain the window film after installation?
A: Maintenance is straightforward-just a few simple guidelines will keep your film performing at its best:
- Avoid sharp contact - Do not use knives, steel wool, or any abrasive tools on the film surface to prevent damage to the coating.
- Clean gently - Use a soft cloth or sponge with a mild, neutral detergent for routine cleaning. Avoid strong acid or alkaline cleaners, as they may degrade the film over time.
- Allow curing time - Refrain from wiping, pressing, or peeling the film surface for at least 7 days after installation to ensure the adhesive bonds fully to the glass.
Following these guidelines will help preserve the film's performance and effectively extend its service life.
Q: What is the after‑sales procedure in case of quality‑related issues?
A: If you encounter a quality defect under proper storage, transportation, and professional installation, simply contact us with supporting evidence (photos, videos, or test reports). We guarantee a response within 24 hours and will provide a suitable solution-such as repair or replacement-upon verification.
