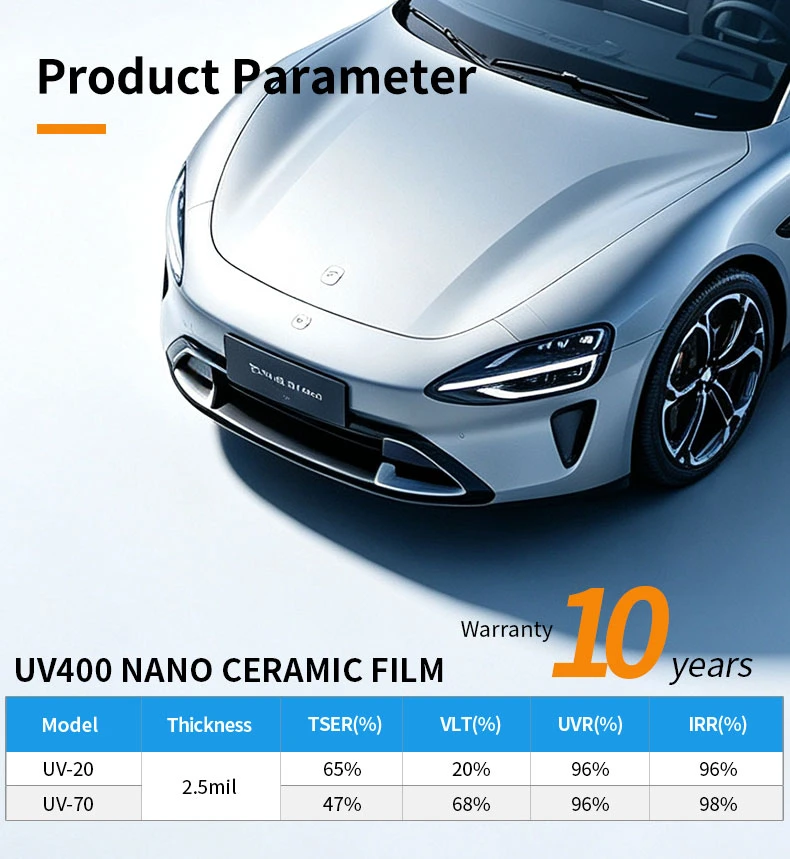

Parameter
|
Item |
Specification |
|
Film Structure |
Hot-melt UV400 skin-care film structure |
|
Total Thickness |
2.5mil (63μm) |
|

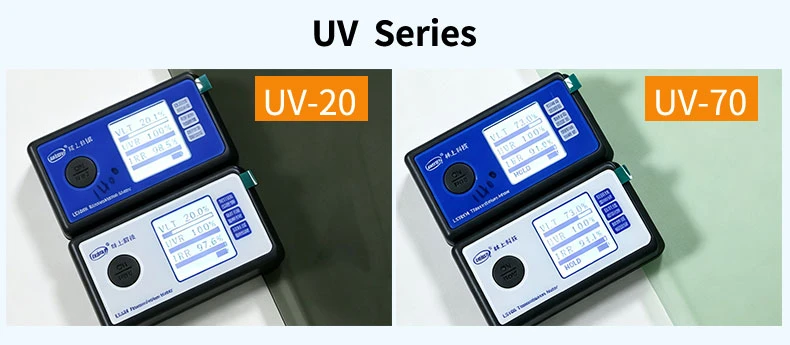

Visible Light Transmittance (VLT) |
20%/70%optional |
|
UV Rejection Rate |
100% |
|
Infrared Rejection |
96%-98% (varies by VLT) |
|
Total Solar Energy Rejection (TSER) |
53%-65% |
|
Visible Light Reflectance (Interior) |
≤7% |
|
Color Fastness Level |
Grade 5 (highest) |
|
Operating Temperature |
-40℃ ~ 90℃ |
|
Standard Roll Size |
1.52m × 30m (60inch × 100ft) |
|
Warranty |
10 years |
Feature
UV400 Skin-care Protection:
100% full-spectrum UV blocking, dual-function for skin care and interior anti-aging.
High-efficiency Heat Insulation:
Achieves 98% infrared rejection for long-term heat insulation and energy conservation.
High-definition & Safety:
Adopting hot-melt process for stable UV400 weather resistance. 2.5mil thickness enhances glass protection performance.
Production Details
Product Qualification

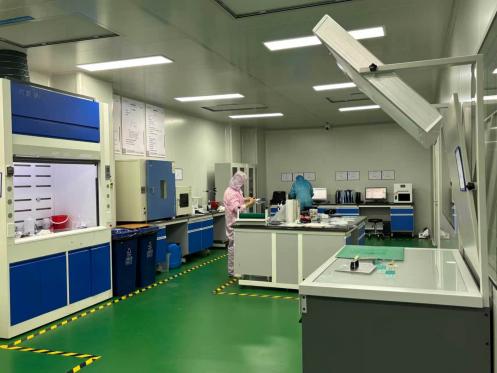

UV Blocking Film is fully manufactured in-house by ZR Zirui New Material Factory, with full-process quality control for hot-melt production.
·Upgraded Process: Manufactured by hot-melt technology. Unlike conventional PSA adhesive doped with UV400 additives, UV400 components are cast and fused inside the base film. It extends UV400 service life and greatly improves color weather resistance without hazing or discoloration.
·Standard Compliance: Metal-free material. Tested to meet industry standards and regulatory requirements. It will not block vehicle electronic signals to ensure driving safety.
·Batch Traceability: At ZR Zirui New Material factory, sample retention test is conducted for every batch with COA report issued. Core tube code enables accurate product traceability.
Deliver, Shipping and serving
Delivery Capacity: As a professional functional-film manufacturer, we keep in-stock inventory. Custom delivery for various sizes and packages is available to precisely meet diverse customer requirements.
Shipping Solution: Container loading trial for varied container sizes is supported, together with sea, air and railway transportation. Leveraging global professional forwarder resources, multiple service terms including FOB / CIF / DDP can be offered.
Technical Service: COA and TDS documents are available for each batch. Our professional quality-service team provides online and offline pre-sales & after-sales technical support.
FAQ
Q1: What makes the UV400 Skin-Care Film different from ordinary skin-care window films?
A1: Our UV Blocking Film series adopts hot-melt casting process. The UV400 raw ingredients are embedded inside the base film, rather than simply added into the PSA adhesive layer. It delivers a much longer UV-protection lifecycle without performance degradation, with greatly improved heat-insulation performance.
Q2: This product comes with 2.5mil thickness. Will it interfere with vehicle-mounted electronic signals?
A2: Manufactured by hot-melt process with ceramic-type properties, the film contains no metallic layers and will not interfere with various vehicle electronic signals.
Q3: Can we obtain batch-specific COA test reports or TDS documents upon purchase?
A3: Yes. Sample retention tests are performed for every production batch. Accurate batch traceability can be realized via core-tube coding.
Q4: Can this film be custom-slit with customized packaging for shipment?
A4: Custom slitting solutions for different sizes and packaging are available. Multiple trade modes including FOB / CIF / DDP can be offered according to regional-market requirements.
