Parameter
|
Item |
Specification |
|
Film Structure |
200+ precision optical stack layers |
|
Total Thickness |
3.0mil (76μm) |
|
Visible Light Transmittance (VLT) |
18%/70%optional |
|
UV Rejection Rate |
≥99% |
|
Infrared Rejection |
99% |
|
Total Solar Energy Rejection (TSER) |
50%-65% |
|
Visible Light Reflectance (Interior) |
≤7% |
|
Color Fastness Level |
Grade 5 (highest) |
|
Operating Temperature |
-40℃ ~ 90℃ |
|
Standard Roll Size |
1.52m × 18m (36inch × 100ft) |
|
Warranty |
10 years |
Feature
Adopts a 200+-layer optical stack structure with natural water-activated color-changing effect, featuring high definition, low haze and zero optical distortion.
Delivers 99% sensible-heat rejection at 940 nm with remarkable performance under heat-lamp testing.
3-mil thickness enhances safety protection, integrating heat insulation and safety-shield functions in one film.
Production Details
Product Qualification
ZR Zirui New Materials 3-Mil Optical-Stack Series premium optical film features a core 200+ optical-layer stack fabricated via precision coating-lamination technology with nano-scale alternating micro-coating. Adopting metal-free-sputtering physical spectral-selection principle, it delivers natural water-activated color-changing effect while ensuring high definition, low haze and zero optical distortion.
The optical performances of the product are tested in accordance with ASTM E903, ASTM D1003 and GB/T 2680 standards, achieving an actual 99% sensible-heat rejection at the key 940 nm infrared heat-insulation band. The 3-mil thickness realizes integrated functions of superior heat insulation and safety protection. Free of metallic layers, it causes zero interference to vehicle-mounted electronic signals.
Each production batch undergoes rigorous COA testing with retained sample records. Exact traceability is available via product label codes. Supported by a comprehensive quality-control system, the product serves high-end customers worldwide.
Deliver, Shipping and serving
ZR Zirui New Materials operates a robust product release & shipment framework. Following IATF16949 and ISO9001 quality-management standards, full-scale quality surveillance runs through incoming-material inspection all the way to finished-product dispatch, securing stable and uniform quality for every batch of shipped goods.

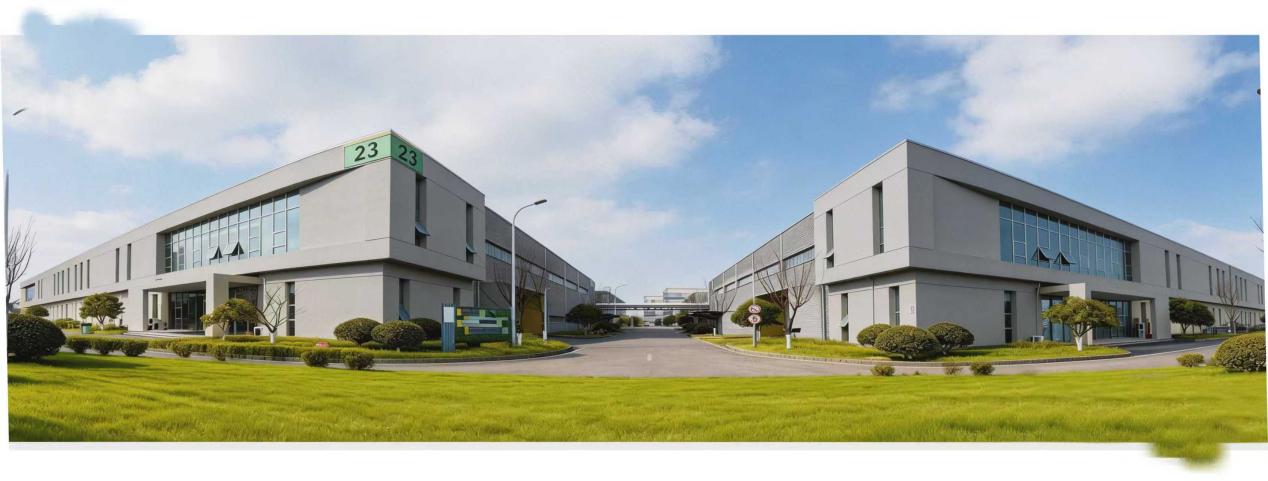

The manufacturing facility keeps long-term cooperative ties with top-tier international logistics providers. Tailored logistics schemes are available based on target-market conditions, covering ocean shipping, air cargo, railway transport, DHL, UPS and multiple alternative delivery channels.
We have built a complete after-sales support mechanism. All customer inquiries get feedback and technical assistance within 24 hours. When quality-concerned incidents occur, we supply professional analysis documentation together with resolution plans oriented toward customer satisfaction.
FAQ

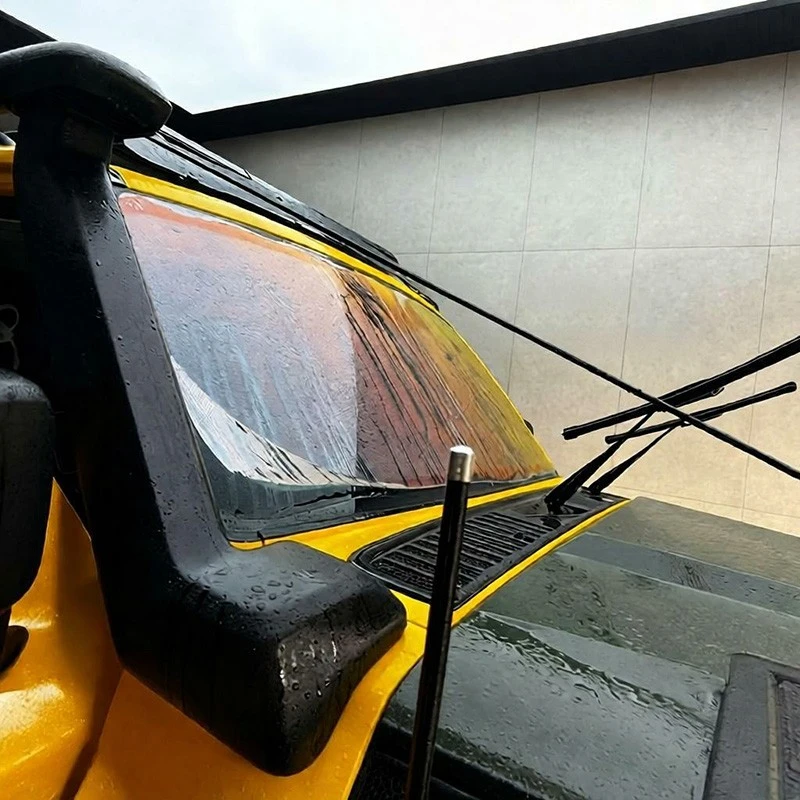

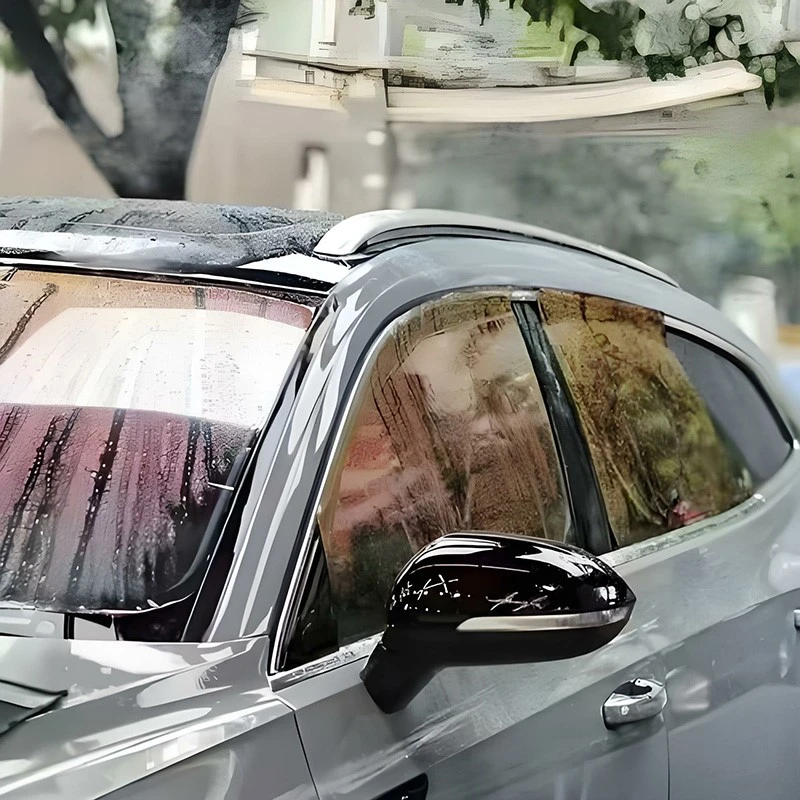

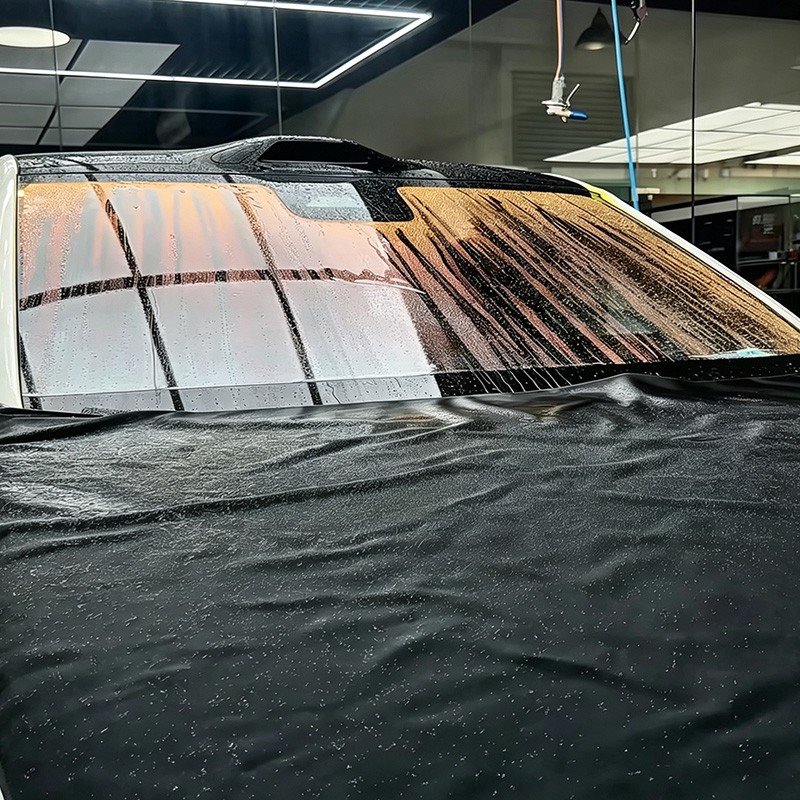

Q: What is the principle behind the water-activated color-changing effect of this optical film?
A: Built upon the core 200+-layer nano-optical stack structure, water droplets or mist on the glass surface alter the refractive index of the optical layers, generating iridescent refraction and producing a rainbow-color effect.
Q: Will the 3-Mil Optical-Stack series interfere with electronic signals?
A: No. The film contains no metallic layers whatsoever. High-efficiency heat rejection is achieved purely through interference of stacked optical layers, causing zero interference to electronic signals from GPS, Bluetooth, mobile phones and other terminals.
Q: Will the 940 nm rejection performance degrade significantly over time?
A: Our optical film adopts a stable nano-coating formula. Manufactured under rigorous quality-management systems including IATF16949 and ISO9001, its optical and heat-insulation performance remains long-term stable within the warranty period under normal service conditions.
Q: What support can the factory provide when after-sales issues arise?
A: Each roll is marked with an individual product code. Our after-sales technical team responds within 24 hours with one-on-one customer communication to confirm quality-related issues. Professional analysis reports and targeted solutions will be delivered to achieve satisfactory outcomes for customers.
